DSFColorPicker

A Swift library to display a customizable color picker for macOS.

Features

• Themable, allow your users to change between provided themes.
• Configurable color palettes
• Configurable in Interface Builder or by code.
• Color picker support to allow selecting a color from the screen
• Configurable recent colors support
• Drag and drop support

Installation

Add https://github.com/dagronf/DSFColorPicker to your project

Configuration

SwiftUI

You can add a DSFColorPickerUI to your SwiftUI view to display a DSFColorPicker in your SwiftUI content.

Parameters

Parameter	Desciption
name	The name for the picker (eg. ‘Stroke color’)
theme	The theme to use, or nil to use the default colors
cellSize	The size of each color cell
spacing	The spacing between each color cell
displaySettings	The components of the color picker to present
selectedColor	A binding to the selected color

Example

struct MyContent: View {
   @State var selectedColor: Color = .red
   var body: some View {
      ...
      DSFColorPickerUI(
         named: "My color picker",
         theme: miniColorTheme,
         selectedColor: $selectedColor
      )
   )
}

let miniColorTheme = DSFColorPickerTheme(name: "Basic Colors", argbValueGrid: [
    [0xF5402C, 0xEB1360, 0x9C1BB1, 0x6634B8, 0x3D4DB7],
    [0x47AE4A, 0x009687, 0x01BBD5, 0x00A6F6, 0x0C93F5],
    [0x89C43F, 0xCCDD1E, 0xFFEC17, 0xFEC001, 0xFF9800],
    [0x000000, 0x5E7C8B, 0x9D9D9D, 0x7A5447, 0xFF5506],
])

Interface builder

You can configure your control in interface builder completely. Drop in a custom view, change the custom type to DSFColorView (or an overload) and choose your display theme using the ‘Named Theme’ setting in the custom types

Full size

In Code

Configurable using a 2d array of colors, for example

A 5x4 grid

Full size

    let theme = DSFColorPickerTheme(name: "default", argbValueGrid: [
        [0xF5402C, 0xEB1360, 0x9C1BB1, 0x6634B8, 0x3D4DB7],
        [0x47AE4A, 0x009687, 0x01BBD5, 0x00A6F6, 0x0C93F5],
        [0x89C43F, 0xCCDD1E, 0xFFEC17, 0xFEC001, 0xFF9800],
        [0x000000, 0x5E7C8B, 0x9D9D9D, 0x7A5447, 0xFF5506]]
    )
    self.colorView.selectedTheme = theme

A single row with no recents

Full size

    let theme = DSFColorPickerTheme(name: "Simple Line", argbValueGrid: [
        [0xE0BA4240, 0xE0F0C976, 0xE096A873, 0xE089C9B8, 0xE0AFE6E4, 0xE07AA3C0, 0xE08B719F, 0xE0DB849A]]
    )
    self.showRecents = false
    self.colorView.selectedTheme = theme

The number of recent colors (if shown) is the same as the number of columns in the color grid

• Show or hide the themes in the control
• Show or hide the ‘selected’ button
• Show or hide recent colors
• Show or hide titles within the control
• Set the cell width and height
• Set the spacing between the color cells

Color sampling support

As of macOS 10.15, your app will require Screen Recording permissions to use the color sampler (the eye dropper).

The first time a user selects the eye-dropper, macOS will display a dialog asking for permission.

You can view the Screen Recording permissions for apps in the system preferences Security & Privacy pane.

System Preferences > Security & Privacy > Privacy > Screen Recording

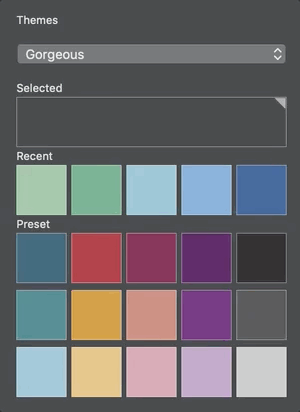

Theme support

Supply a set of themes, and configure the control to display the theme selector.

Drag and drop support

• Drag from the picker to any other component (eg. a color well) that supports dropping colors
• Drag colors into the control

Dark mode support

Automatically adjusts to light and dark modes dynamically

High contrast support

Dynamically adjusts to high-contrast display modes

Full size

Accessibility support (preliminary)

• High contrast support
• VoiceOver reads out ‘named’ color views as they are interacted with (“ Color Selector”)

Changes

3.0.0

• SwiftUI support

2.0.0

• Updated the package to depend on the DSFColorSampler package instead of embedding an older version of the source.

• Removed ‘direct’ method of installing as the SPM package now depends on DSFColorSampler.

1.2.0

• Fixed a compile bug when archiving (Github issue tracker)

License

MIT. Use it for anything you want, just attribute my work. Let me know if you do use it somewhere, I’d love to hear about it!
